LDA-F
Liquid Detonation Flame Arrester for filling and drain lines - internal installation
Features
Function and Description
Main Component – PROTEGO® Flame Arrester Unit

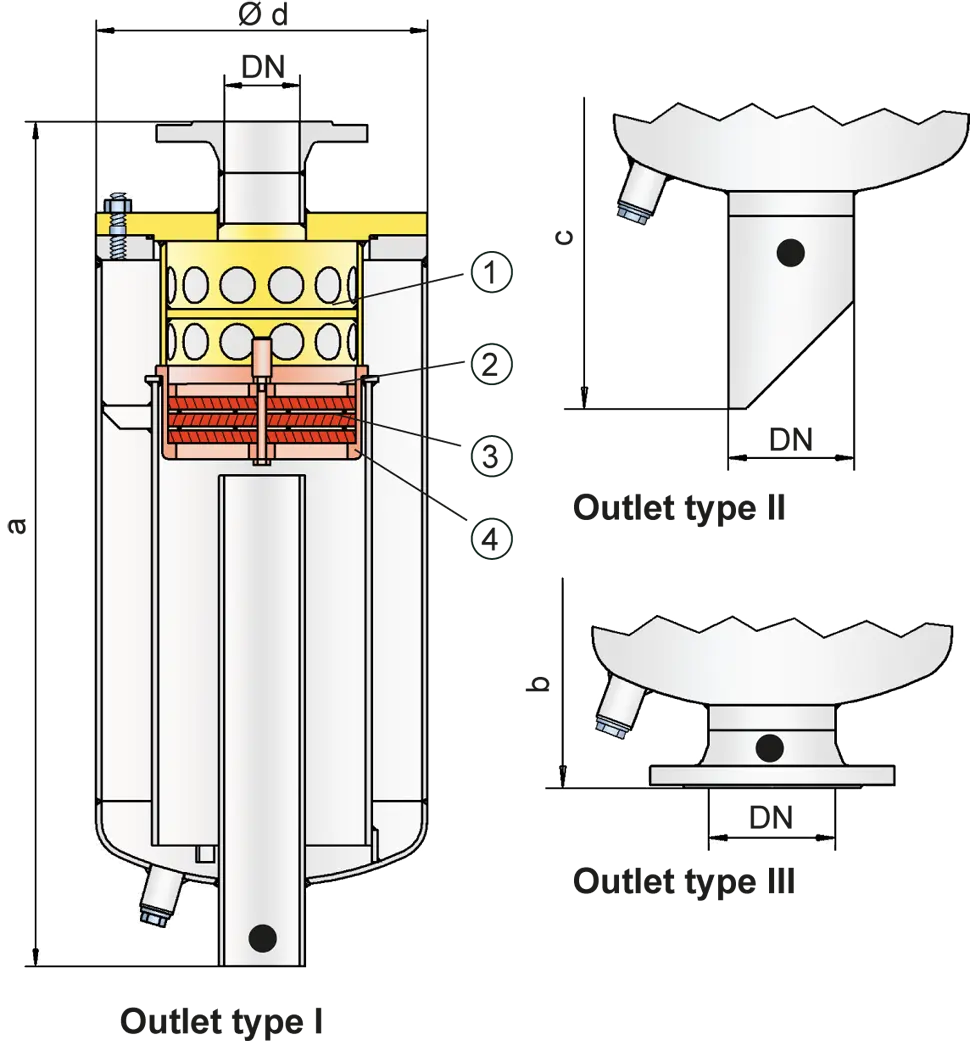

The PROTEGO® LDA-F Series of Liquid Detonation Arresters was developed for storage tanks filling and drain lines that are not continuously filled with product and sometimes contain a combustible mixture. The integrated siphon protection (1) with PROTEGO® Flame Arrester Unit (2) additionally prevents the liquid, in which the lines are immersed, from being siphoned off while the container is being drained. The PROTEGO® Flame Arrester Unit consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing (4). The number of FLAMEFILTER® discs and their gap size depends on the arrester’s intended use.
Prevention of Flame Spread in Tank During Ignition

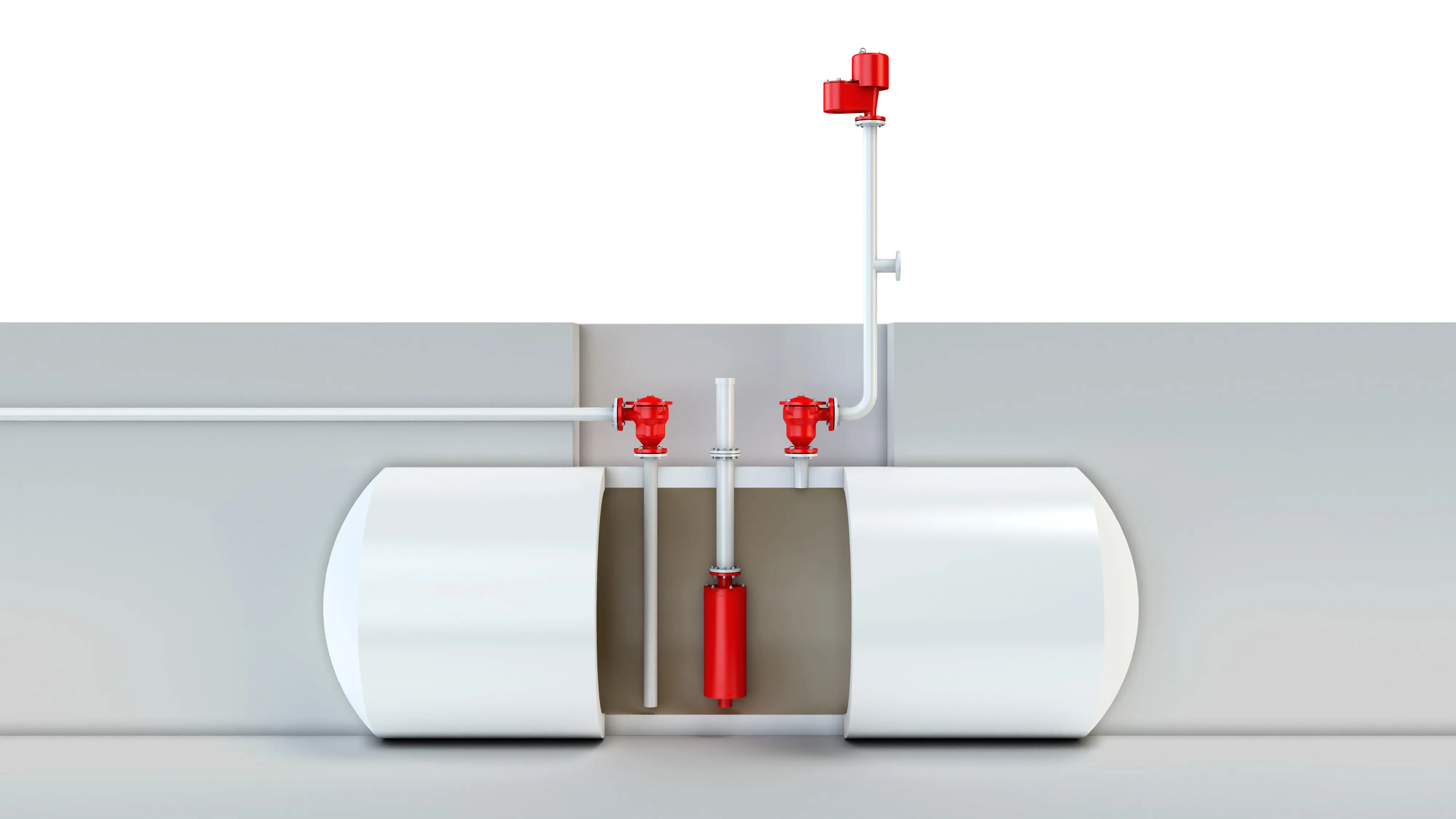

The device Appareil A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. is installed inside the container at the end of the line and prevents the combustion from being transferred into the tank if the explosive atmosphere Atmosphère à risques d'explosion A mixture of air and flammable substance in the form of gases, vapors, mists or dusts under atmospheric conditions in which, after ignition, spreads to the entire unburned mixture. ignites. The PROTEGO® LDA-F Series of Liquid Detonation Arresters combine the classic PROTEGO® Flame Arrester design with the siphon principle in which the liquid product serves as a barrier to flame propagation.
Reduction of Flame Propagation Speed
When a highly accelerated pipe deflagration or detonation occurs, the combustion pressure and flame propagation speed are substantially reduced by the design, converted into a low-energy deflagration, and then stopped by the remaining immersion liquid and the PROTEGO® Flame Arrester.
For Explosion Groups IIA to IIB3
The application limits for the device is product vapor/air mixture temperatures up to +60°C / 140°F and an absolute pressure up to 1.1 bar / 15.9 psi. This covers all possible operating conditions of empty lines for flammable liquids. The liquid detonation arrester Arrête-flammes antidétonation Flame arrester designed to prevent the transmission of a detonation. in standard design is pressure resistant up to 10 bar / 145 psi. The device protects against nearly all flammable liquids and is approved for explosion groups IIA to IIB3 (NEC group D and C MESG ≥ 0.65 mm). EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Dimensions
To select the nominal size Diamètre nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity chart on the following pages
| DN | 25 / 1" | 32 / 1¼“ | 40 / 1½“ | 50 / 2" | 65 / 2½“ | 80 / 3" | 100 / 4" | 125 / 5" | 150 / 6" | 200 / 8" | 250 / 10" |
| a | 550 / 21.65 | 550 / 21.65 | 650 / 25.59 | 650 / 25.59 | 850 / 33.46 | 875 / 34.45 | 1050 / 41.34 | 1250 / 49.21 | 1450 / 57.09 | 1600 / 62.99 | 1975 / 77.76 |

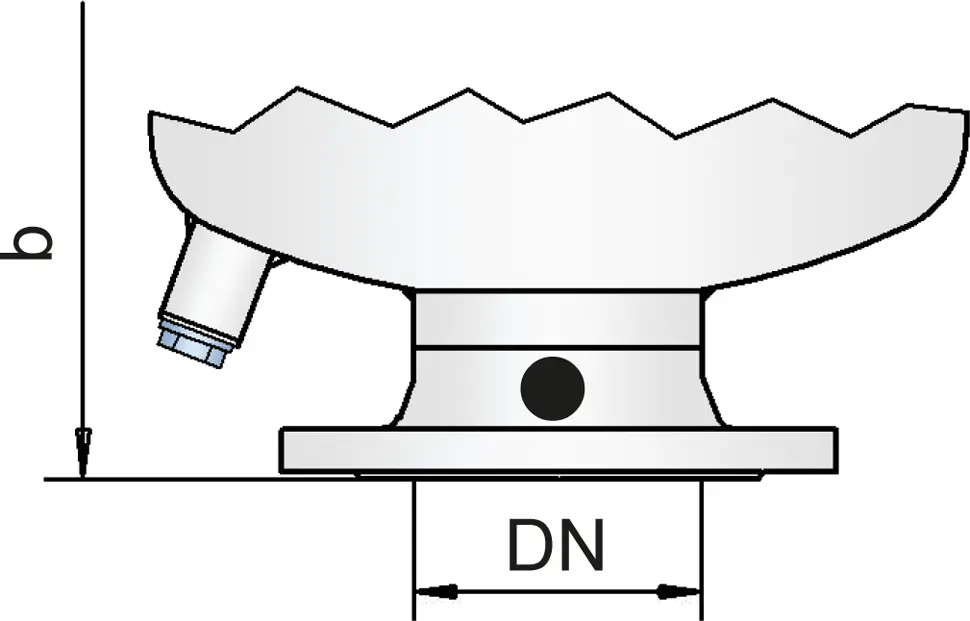

| b | 588 / 23.15 | 590 / 23.23 | 692 / 27.24 | 695 / 27.36 | 895 / 35.24 | 925 / 36.42 | 1102 / 43.39 | 1305 / 51.38 | 1505 / 59.25 | 1662 / 65.43 | 2043 / 80.43 |

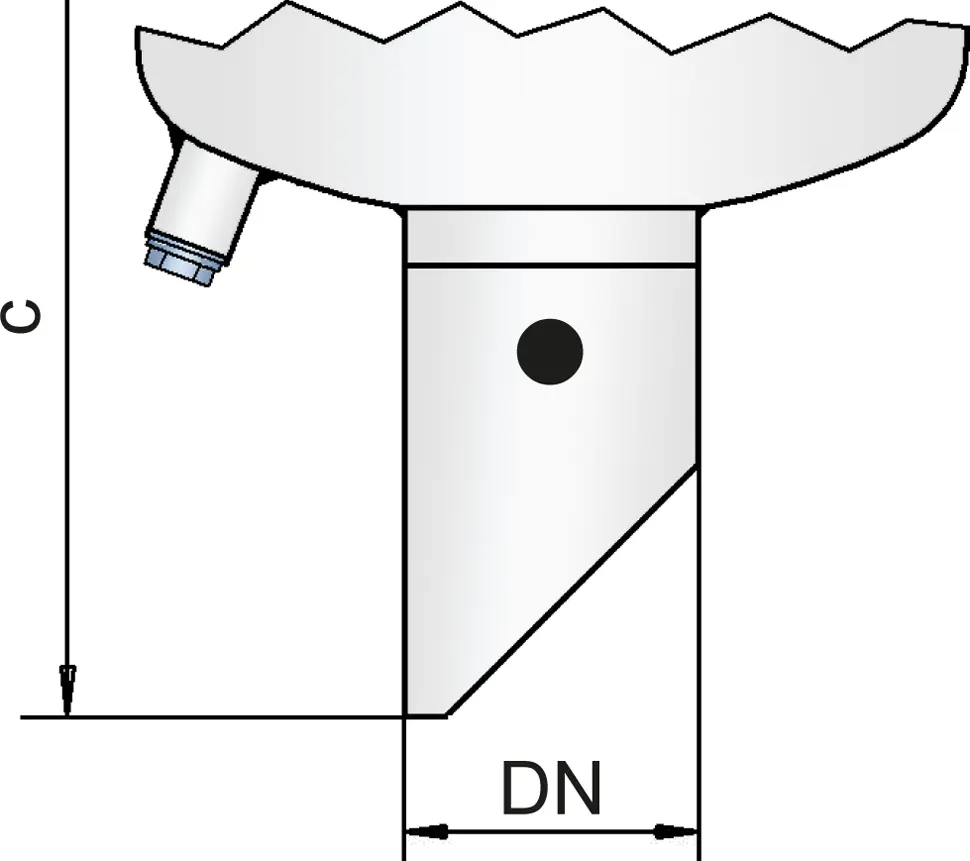

| c | 775 / 30.51 | 775 / 30.51 | 875 / 34.45 | 875 / 34.45 | 1075 / 42.32 | 1095 / 43.11 | 1270 / 50.00 | 1480 / 58.27 | 1680 / 66.14 | 1830 / 72.05 | 2275 / 89.57 |
| d | 140 / 5.51 | 140 / 5.51 | 220 / 8.66 | 220 / 8.66 | 275 / 10.83 | 275 / 10.83 | 356 / 14.07 | 457 / 17.99 | 508 / 20.00 | 600 / 23.62 | 711 / 27.99 |
Dimensions in mm / inches
Material selection for housing
| Design | A | B |
| Housing | Steel | Stainless Steel |
| Shock absorber | Steel | Stainless Steel |
| Gasket | FPM | PTFE |
| Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. | A | A |
Special materials upon request
Material flame arrester unit
| Design | A |
| FLAMEFILTER® cage | Stainless Steel |
| FLAMEFILTER®* | Stainless Steel |
| Spacer | Stainless Steel |
* the FLAMEFILTER® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing Corps A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. and cage materials are used.
Special materials upon request
Selection of explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| > 0,90 mm | IIA | D |
| ≥ 0,65 mm | IIB3 | C |
Special approvals upon request
Specification of max. operating temperature
| ≤ 60°C / 140°F | Tmaximum allowable operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. in °C |
| - | Designation |
higher operating temperatures upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other connections upon request
Outlet type
| Straight pipe | I |
| Beveled pipe | II |
| EN 1092-1, Form B1 or DIN 2501, Form C | III (EN or DIN) |
| ASME B16.5 CL 150 R.F. | III (ASME) |
other types upon request
Flow Capacity Chart
The volume flow V in m³/h was determined with water according to DIN EN 60534 at a temperature Tn = 20°C and an atmospheric pressure pn = 1,013 bar, kinematic viscosity v = 10-6 m²/s
To avoid electrostatic charge of flammable liquids the maximum flow is limited (refer to TRGS 727, CENELEC-Report CLC/TR 60079-32-1).
