BE/HR-D
Pressure Relief Valve deflagration- and endurance burning-proof
Features
Function and Description
Pressure Relief Valve with Integrated PROTEGO® Flame Arrester
The Deflagration-Proof and Endurance-Burning-Proof BE/HR-D Type PROTEGO® valve is a highly developed pressure relief valve Soupape de surpression Valve designed to open and relieve excess pressure and to reclose and prevent the further flow of fluid after normal conditions have been restored. with an integrated Flame Arrester Unit. It is primarily used as a device Appareil A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. for flame transmission proof outbreathing on tanks, containers and process engineering apparatus. The valve offers reliable protection against excess pressure and prevents product losses almost up to the set pressure Pression de réponse Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions. ; it also protects against atmospheric deflagration as well as endurance burning Endurance burning Stabilized burning for an unlimited time. if stabilized burning occurs. The PROTEGO® Flame Arrester Unit is designed to achieve minimum pressure drop with maximum safety. The BE/HR-D valve is available for substances of explosion group IIA (NEC group D MESG > 0.9 mm).
Advanced Manufacturing Technology

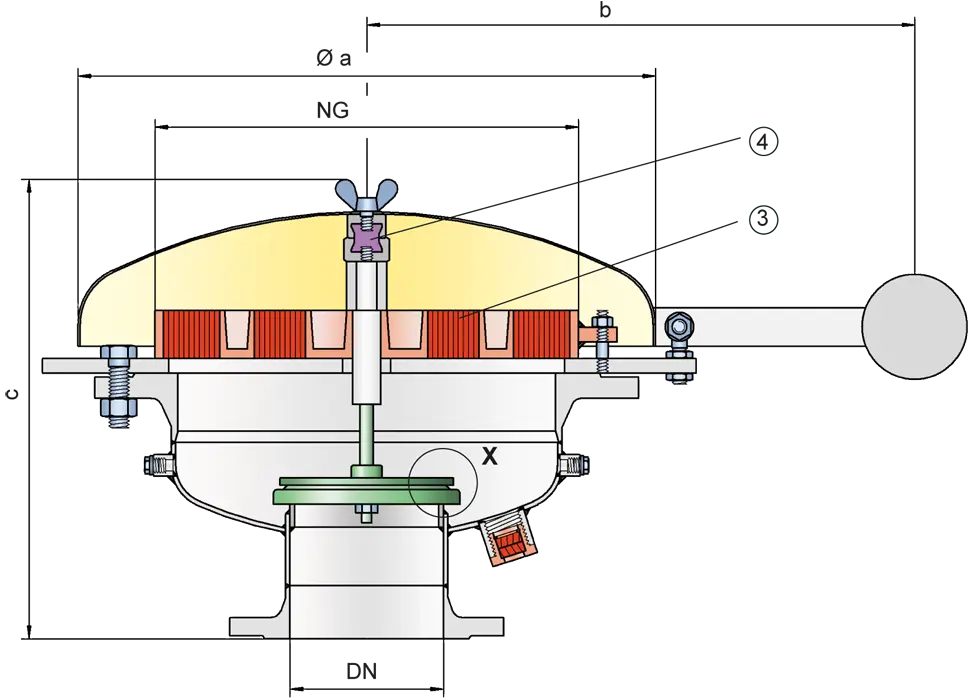

When the set pressure is reached, the valve starts to open and reaches full lift Course Lift is the actual travel of the valve pallet from the main valve out of the closed position. within 40% overpressure Surpression Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. . The tank pressure Pression de la cuve Tank pressure is the pressure within a tank. is maintained up to the set pressure with a tightness that is far superior to the conventional standard due to our state of the art manufacturing technology. This feature is ensured by the valve seats made of high quality stainless steel and with individually lapped valve pallets (1) or with an air cushion seal Joint A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. (2) in conjunction with high quality FEP diaphragm Membrane A diaphragm is a thin layer of material, which has a large surface area. . After the excess pressure is discharged, the valve reseats and provides a tight seal.
Many Individual Certifications
If the set pressure is exceeded, explosive gas/product-vapour air mixtures are released to the atmosphere. If this mixture ignites, the integrated PROTEGO® Flame Arrester Unit (3) prevents flame transmission into the tank. If additional mixture continues to flow and stabilized burning occurs, the integrated Flame Arrester Unit prevents flashback as a result from endurance burning. The valve is protected and also fulfils its function under this severe service conditions. The spring Ressort A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. loaded weather hood Capot de protection contre les intempéries A weather hood is a cover to protect the internal components of a device from environmental influences. opens as soon as the fusible element (4) melts. The valve can be used up to an operating temperature Operating temperature Temperature reached when the equipment is operating under design conditions. of +60°C / 140°F and meets the requirements of European Tank Design Standard EN 14015 – Appendix L and ISO 28300 (API 2000). EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Dimensions
To select the nominal size Diamètre nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), please use the flow capacity chart on the following page
| DN | 150 / 6" | 200 / 8" | |
| NG | 400 / 16" | 400 / 16" | |
| a | 600 / 23.62 | 600 / 23.62 | |
| b | 545 / 21.46 | 545 / 21.46 | |
| c | 485 / 19.09 | 485 / 19.09 | NG = Nominal size |
Dimensions in mm / inches
Material selection for housing
| Design | A | B |
| Housing | Steel | Stainless Steel |
| Valve seat | Stainless Steel | Stainless Steel |
| Weather Hood | Steel | Stainless Steel |
| Flame arrester unit Flame arrester unit Flame arrester casing with FLAMEFILTER® set. | A | B |
Special materials upon request
Material combinations of flame arrester unit
| Design | A | B |
| FLAMEFILTER® cage | Steel | Stainless Steel |
| FLAMEFILTER® | Stainless Steel | Stainless Steel |
Special materials upon request
Material selection for valve pallet
| Design | A | B | C |
| Pressure range [mbar] [inch W.C.] | +2.0 up to +3.5 +0.8 up to +1.4 | >+3.5 up to +14 >+1.4 up to +5.6 | >+14 up to +35 >+5.6 up to +14 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal |
Special materials and higher pressure settings upon request
Selection of explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| > 0,90 mm | IIA | D |
Special approvals upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Design Types and Specifications
The valve disc is weight-loaded.Additional special devices available upon request
Settings
| Pressure: | +2.0 mbar | +35 mbar |
| +0.8 inch W.C. | +14 inch W.C. |
Higher pressure settings upon request.
Flow Capacity Chart

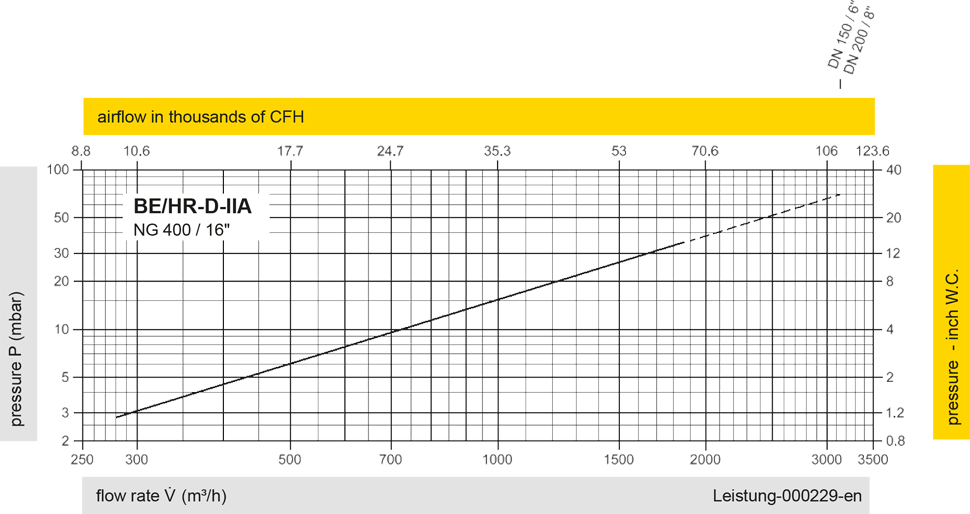

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
