Highly Developed Vacuum Relief Valve
The PROTEGO® V/SV-XXL valve is a highly developed optimized vacuum relief valve with excellent flow performance. It is primarily used as a device for relieving vacuum in tanks, containers, and process equipment.
High-Performance Vacuum Relief Valve with Precise Tightness
When the set vacuum is reached, the valve starts to open and reaches full lift within 100% vacuum increase. The tank vacuum is maintained up to the set vacuum with a tightness that is above the normal standards due to our highly developed manufacturing technology. This feature is ensured by valve seats made of high quality stainless steel with precisely lapped valve pallets and a reinforced housing design. After the vacuum is balanced, the valve re-seats and provides a tight seal.
Flow-Optimized Valve Body for Maximum Efficiency
The optimized fluid dynamic design of the valve body and valve pallet is a result of extensive research and development, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Dimensions
| DN | 300 / 12" |
| a | 946 / 37.24 |
| b | 649 / 25.55 |
Dimensions in mm / inches
Dimensions of pressure and vacuum relief valves with heating jacket upon request
Material selection for housing
| Design | A | B | C |
| Housing | Aluminium | Steel | Stainless Steel |
| Heating jacket (V/SV-XXL-H-...) | – | Steel | Stainless Steel |
| Valve seat | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | PTFE | PTFE | PTFE |
| Cover | Aluminium | Steel | Stainless Steel |
Option: Housing ECTFE-coated
Special materials upon request
Material selection for vacuum valve pallet
| Design | A | B |
| Pressure range [mbar] [inch W.C.] | -2.0 up to -9.0 -0.8 up to -3.6 | <-9.0 up to -16 <-3.6 up to -6.4 |
| Valve pallet | Aluminium | Stainless Steel |
| Sealing | Metal to Metal | Metal to Metal |
Special material as well as higher vacuum upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Design Types and Specifications
The valve pallets are weight-loaded. Higher vacuum can be achieved upon request with a special spring-loaded design. There are two different designs:Additional special devices available upon request.
Settings
| Vacuum: | -2.0 mbar | -16 mbar |
| -0.8 inch W.C. |
Higher vacuum settings upon request.

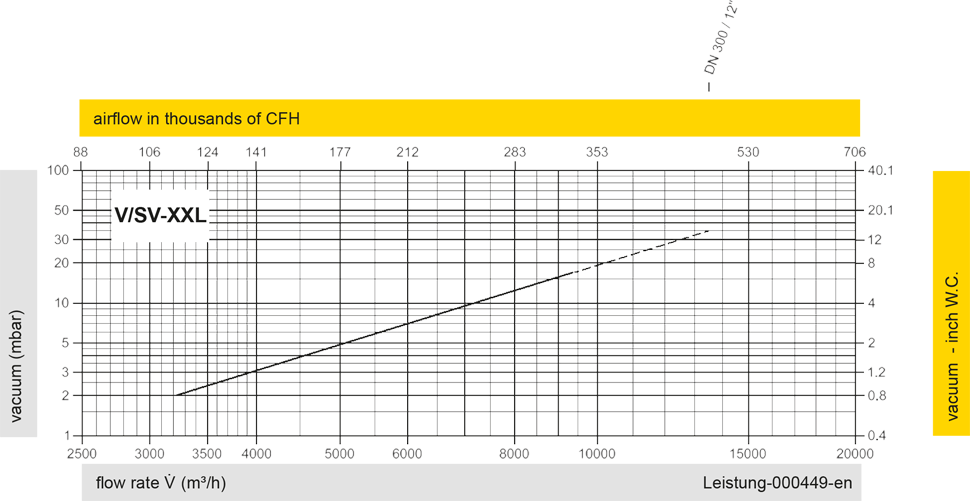

Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
